Floor heating: carbon film

Carbon-film heating under timber or carpet

Safe-t-FLEX carbon film provides under-carpet heating where the carpet, underlay and floor construction suit it. The same thin film is laid dry under suitable floating timber and laminate floors, with no screed or glue. Ron confirms whether your floor suits.

Request a floor heating quote Call 0400 709 000

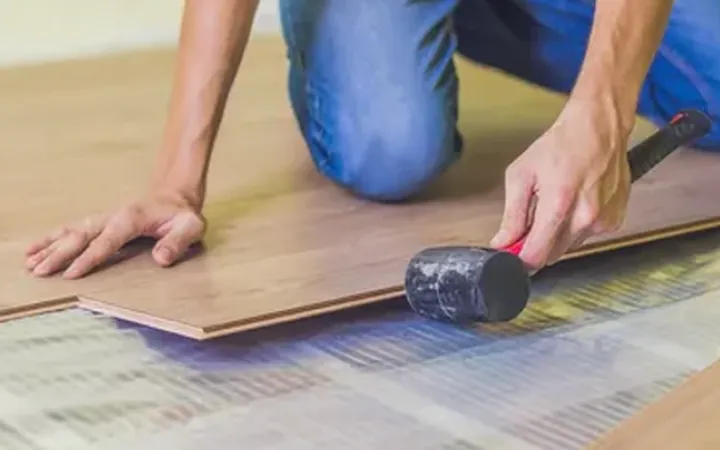

Laminate boards being laid over thin heating film on a floor — Illustrative installation: laminate laid over heating film

Laid drywith no screed or glue
Thin filmwithin the floor build-up
Controlsspecified to suit your rooms and project

How it works

How carbon film warms a floor

The film warms the floor surface, which then warms the people and furnishings in the room. It sits within the floor build-up, so nothing shows once the floor is laid.

Exploded view of a floating timber or laminate floor. Simplified from CBS's installation slideshow. This shows timber or laminate only, not carpet.

Timber or laminate floor, laid as a floating floor.
Polythene sheet, or the flooring maker's recommended layer.
Safe-t-FLEX carbon film, the thin heating element.
Foam underlay insulates the film from below.
Subfloor: a level concrete slab or boarded timber floor.

Carbon heating film laid across a floor while its connections are made — Carbon film on a floor before the finished flooring is laid.

Explanatory illustration only, not installation instructions. Carpet installations use their own build-up; Ron confirms suitable carpet and underlay for each project, and the timber diagram is not a carpet installation guide.

Suitability

Is carbon film right for your floor?

Well suited to

Floating timber and laminate floors
Suitable carpet installations, confirmed by Ron
Floors where a thin build-up helps
New floors in homes and extensions

Things to consider

The floor covering, underlay and subfloor decide suitability
Not placed under fixed cabinetry; furniture positions are planned in the layout
Tiles and stone suit under-tile cable instead
A licensed electrician connects the system

What Ron will ask about

Your suburb or postcode
The floor finish you plan to use, and its maker if known
Rooms and their sizes
The subfloor: concrete or timber
Fixed cabinetry and furniture positions

Technical details

Safe-t-FLEX for floors

General product information. Selection details for your project are specified in your quote.

Safe-t-FLEX for floors
Heating element	Safe-t-FLEX carbon film, a thin electrical heating foil
Position	Within the floor build-up, beneath the floor covering
Installation method	Laid dry, with no screed or glue
Floor finishes	Floating timber and laminate; suitable carpet as confirmed by Ron
Floor height	Depends on the film, underlay and covering layers for your floor
Controls	Controls are specified to suit your rooms and project.

How a project runs

From assessment to installation

Step 1: Assessment
Tell Ron about the rooms, the floor finish and the subfloor.
Step 2: Specified quote
Film layout, quantities, underlay and controls for each room.
Step 3: Supply
CBS supplies the specified film and controls for your project.
Step 4: Installation guidance
A licensed electrician installs and connects the system with Ron's technical guidance. Installation arrangements are discussed case by case.

Ask Ron about heating under your floor.

Tell us about the floor finish and the rooms. Ron will tell you whether carbon film suits your floor.

Your name

Email address

Phone number (optional)

Suburb / postcode

For example, Blacktown NSW or 2148.

Heating interest (optional)

Tell us a little about your project (optional)

Which floor finish (timber, laminate or carpet)? Which rooms?

Your details are used only to reply to your enquiry. This form is protected by Cloudflare Turnstile. How we handle your details

Call Ron0400 709 000 Emailron@cbsheating.com

Timber and carpet floor questions

Can it go under carpet?

It can, where the carpet and underlay suit a heated floor. Ron confirms the carpet, underlay and build-up for each project, as it differs from a timber floor.

Does it raise the floor?

The film is thin and laid dry, with no screed or glue. The finished height depends on the underlay and covering layers for your floor, which Ron confirms in the quote.

What about furniture?

Furniture positions are part of the layout. The film is not placed under fixed cabinetry, and the flooring maker's guidance for heated floors applies. Ron confirms this for your rooms.

What about tiled floors?

Tiles and stone suit heating cable instead. See under-tile heating or ultra-thin floor cable.

Who installs it?

A licensed electrician connects the system using CBS's specification, with Ron's technical guidance. Installation arrangements are discussed case by case.
